Intraoral Scanner Digital Implant / Orthodontics / Restoration
The intraoral scanner offers simple operation, multi-system compatibility, and high data accuracy. Compact and time-efficient, it’s the ideal choice to optimize dental laboratory workflows and reduce time costs.
- Use high-quality raw materials
- Fast delivery by default DHL or Fedex
- 30-day worry-free return and exchange
- Professional customer service
Intraoral Scanner
Core Advantages
- Efficient Performance: Fast scanning speed

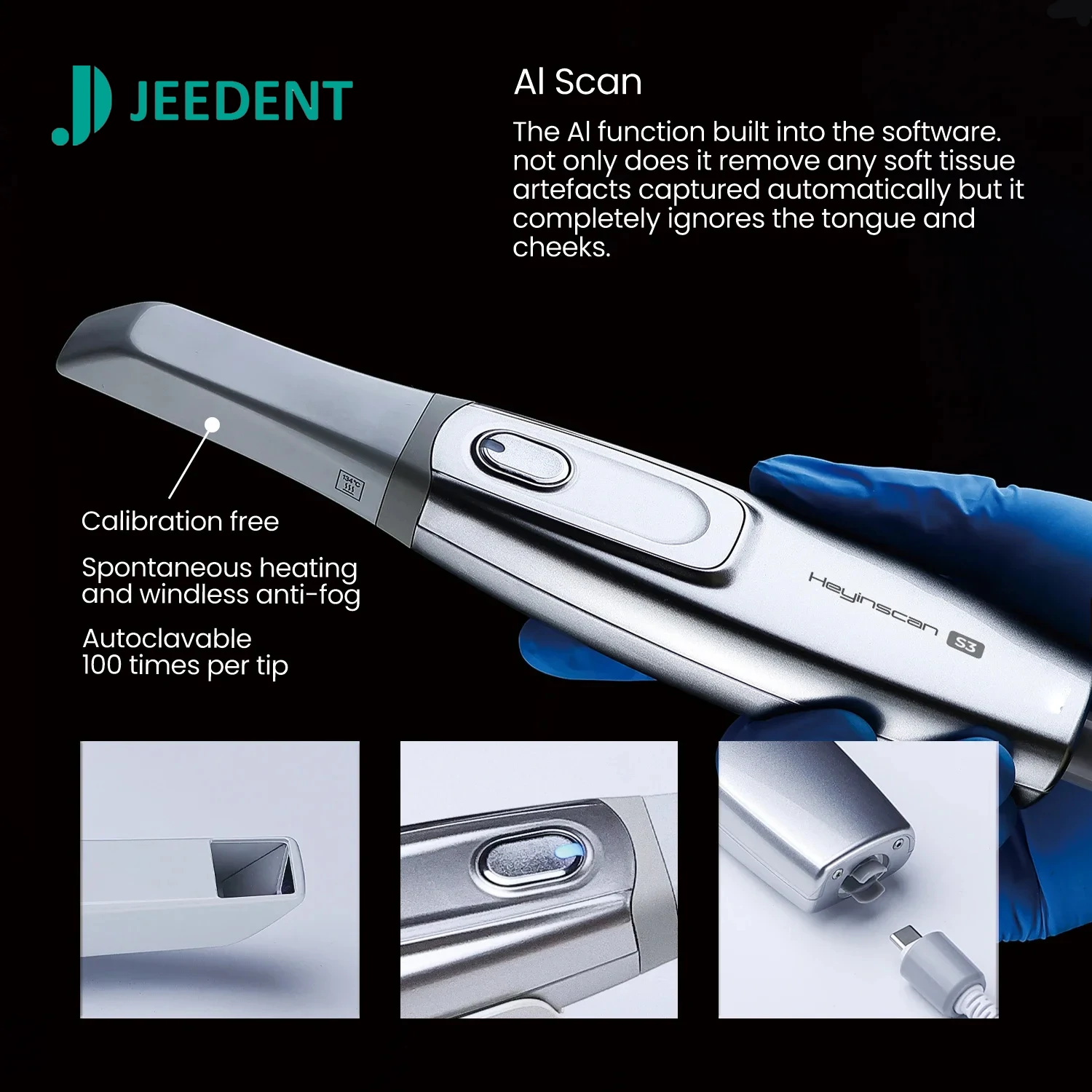

- Intelligent Upgrade: Equipped with new AI functions
- Good Portability: Compact device
- User-Friendly Operation: Simple to operate
- Considerate Design: Personalized design
- Flexible Scanning: Free to scan
Ecosystem and Functions
- Complete Ecosystem: Compatible with systems like dental wings, exocad, 3shape, ASIGA, BlueSkyBio, etc.

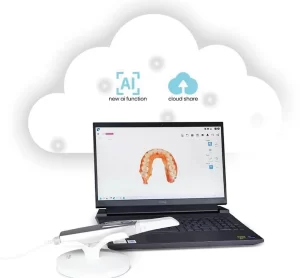

- Cloud Sharing: Generates QR codes and links to transfer data, facilitating collaboration between clinics and dental laboratories, and ensuring data security and reliability
- Health Report: After scanning oral data, the system can automatically identify lesions such as dental caries and dental plaque, and generate an oral health report with one click
- Scan Body Matching: Enhances clinical implant cases in three steps, including importing implant data from the database (enabling DIY registration), scanning the scan body and matching
- Occlusion Check: Can determine whether the occlusal relationship between the upper and lower jaws is accurate

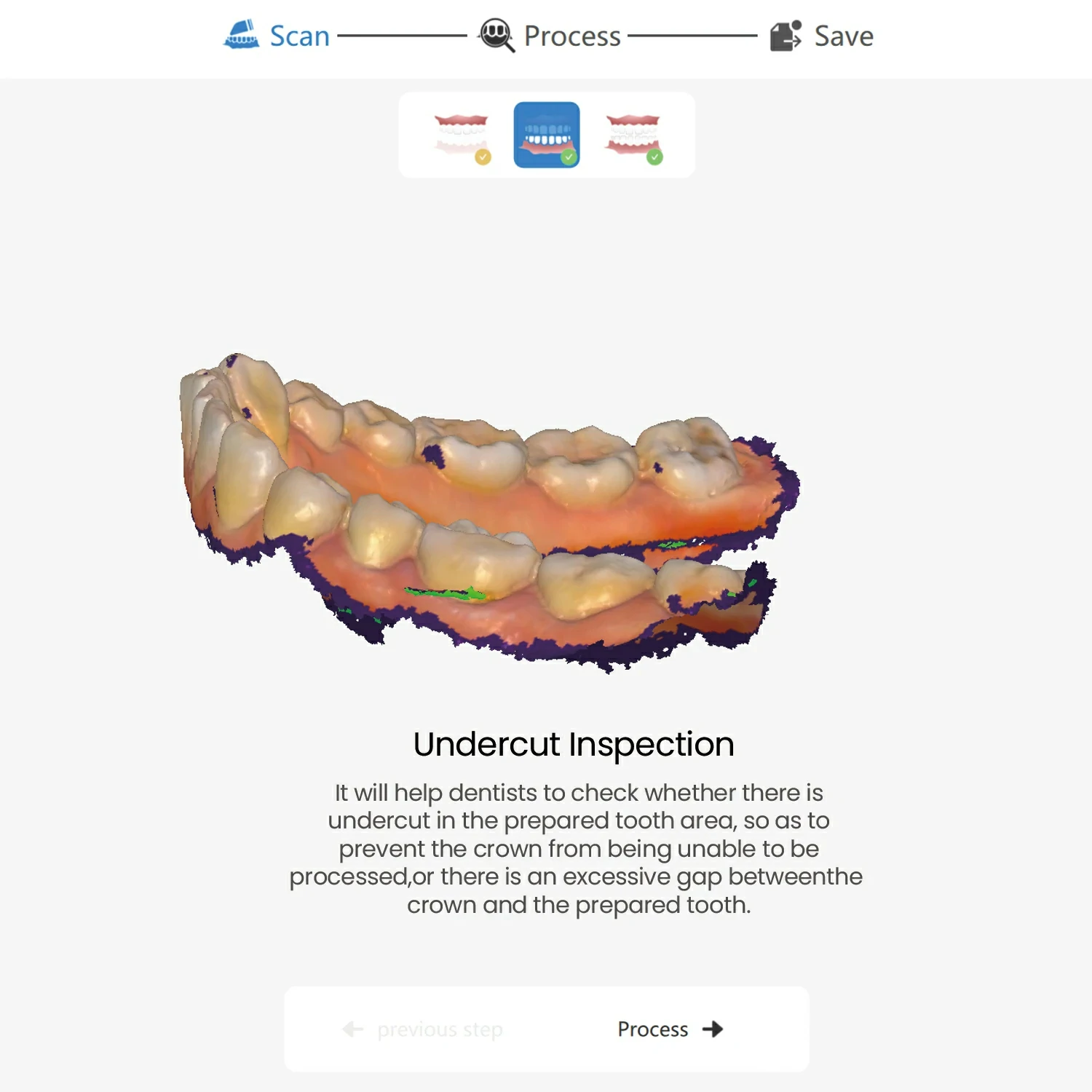

- Undercut Inspection: Helps dentists check for undercut areas to avoid the crown being unable to be seated or excessive gap between the prepared tooth and the crown
- Margin Line Drawing: Assists dentists in drawing margin lines from scan data and exporting them into a format that can be imported into design software (such as exocad)
- Model Builder: Helps dentists generate model files that can be directly used for printing, and can be used with one click
- Metal Scan: Key optimizations have been made for the difficulties of noise and reflection during metal scanning. Optimized metal scanning tools can make it easier for dentists to scan all kinds of metal materials
- Scanning Lock:
- Area Lock: Dentists can select and lock ideal local areas in the scan data, and the data in this locked area will not change during the subsequent rescan process
- View Lock: When scanning, the system displays a small gray “scan view” box on the interface. Through this scanning prompt, dentists can clearly judge whether the missing data has been rescanned.
- HD Camera: During scanning, dentists take oral photos with the camera and save the high-resolution photos in reports as case attachments.
Intraoral Scanner Specifications
| Weight | 210g | Dimension (Handle, L × W × H) | 240mm × 4.5mm × 30.5mm |
| Scan Area (Standard) | 15mm × 15mm | Standard Tip Size | 79mm × 17mm × 15mm |
| Scan Area (Mini) | 12mm × 12mm | Mini Tip Size | 8mm × 16mm × 13.8mm |
| Output | STL output | Connectivity | USB 3.0 |
| Calibration | Calibration – free | Scan Speed | Full arch with occlusion 30 seconds |
| Auto Focus | Supported, up to 10 times, auto focus range 12 – 15mm, auto focus speed 4ms at 13℃ | Accuracy | Crown < 10μm; Single tooth < 20μm; Full arch 30μm |
| Multilingual System | |||
| Supports Chinese, English, French, Spanish, Russian, Portuguese, Italian, Greek, Polish, Romanian, Japanese, Korean, etc. | |||
| Recommended System Configuration | |||
| Recommended for Laptop: CPU: Intel Core i7-11700H Memory: 16GB and above Graphics card: NVIDIA A60 or 3060 and above (A-card integrated graphics not supported) Display resolution: 2560 × 1600 and above Operating system: Windows 10 Pro 64-bit |
Recommended for Desktop: CPU: Intel Core i7-11700 Memory: 16GB and above Graphics card: NVIDIA A60 or 3060 and above (A-card integrated graphics not supported) Display resolution: 1920 × 1080 and above Operating system: Windows 10 Pro 64-bit Requires USB 3.0 (or higher) interface, supports external operation |
||
