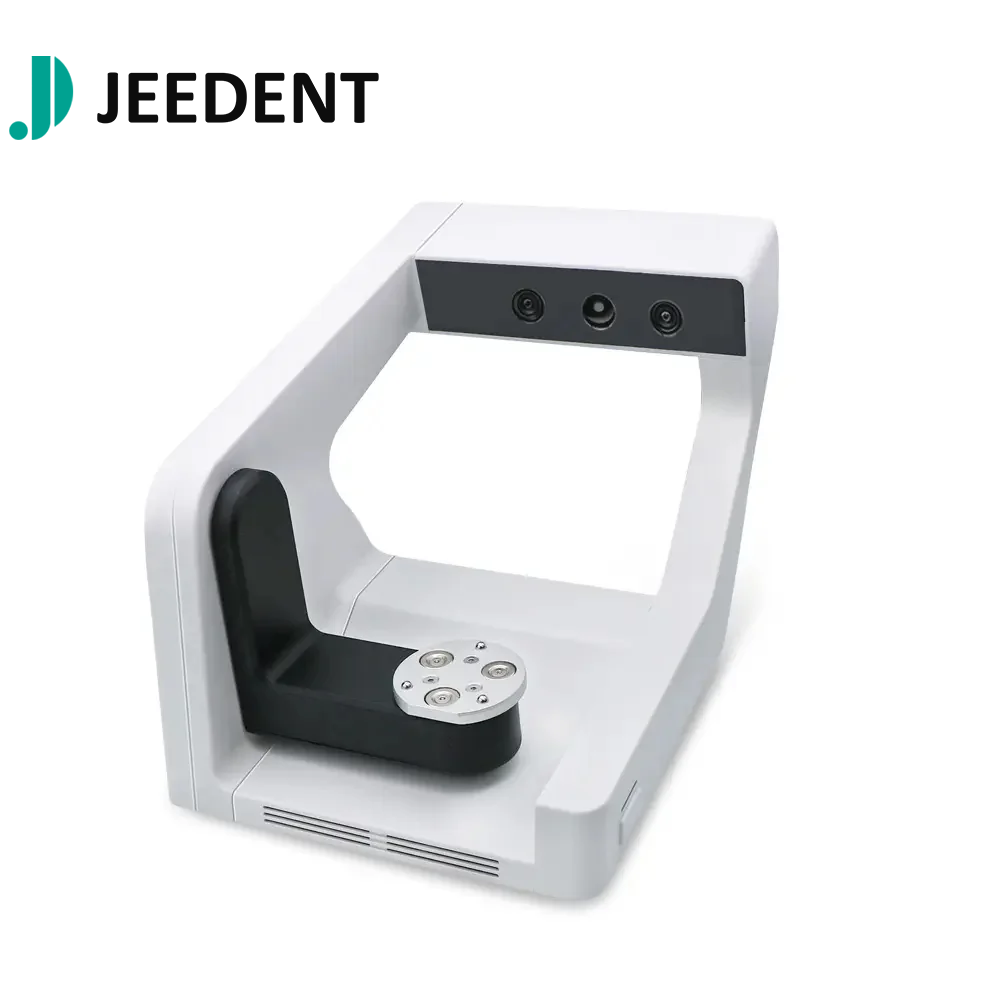

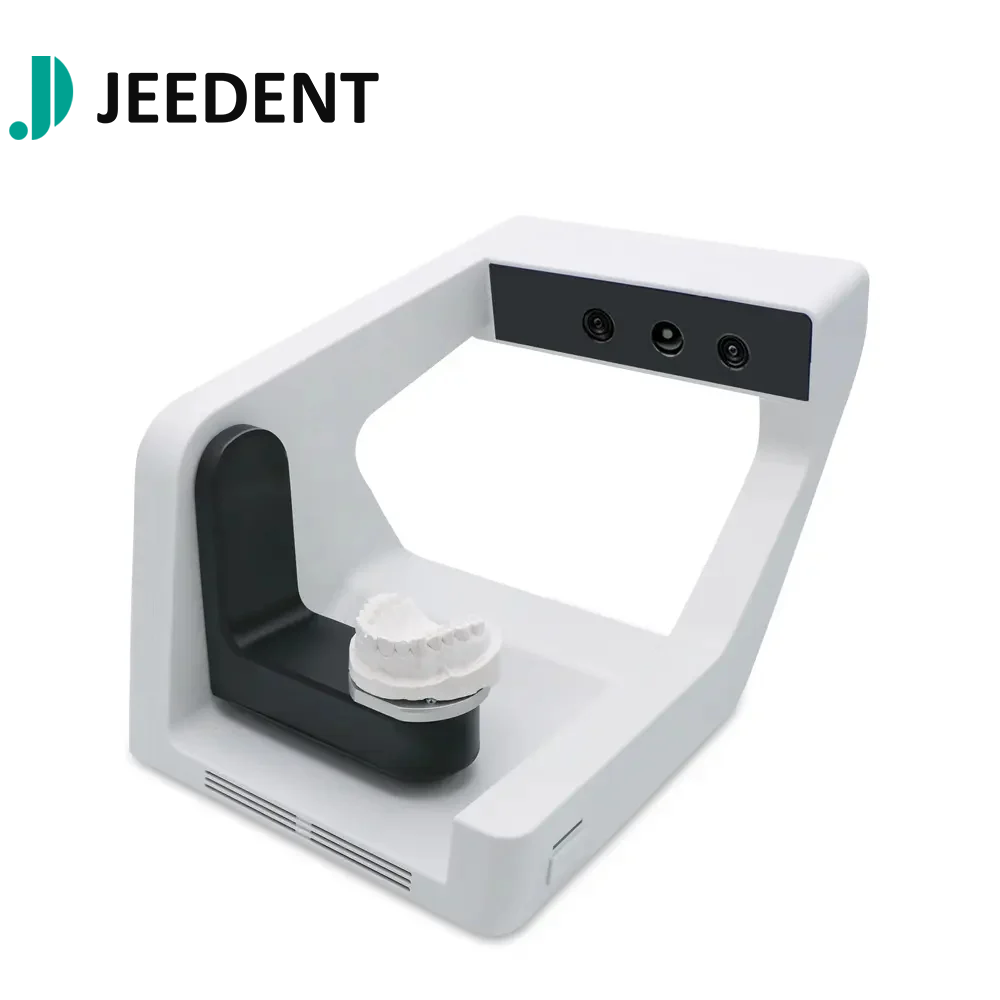

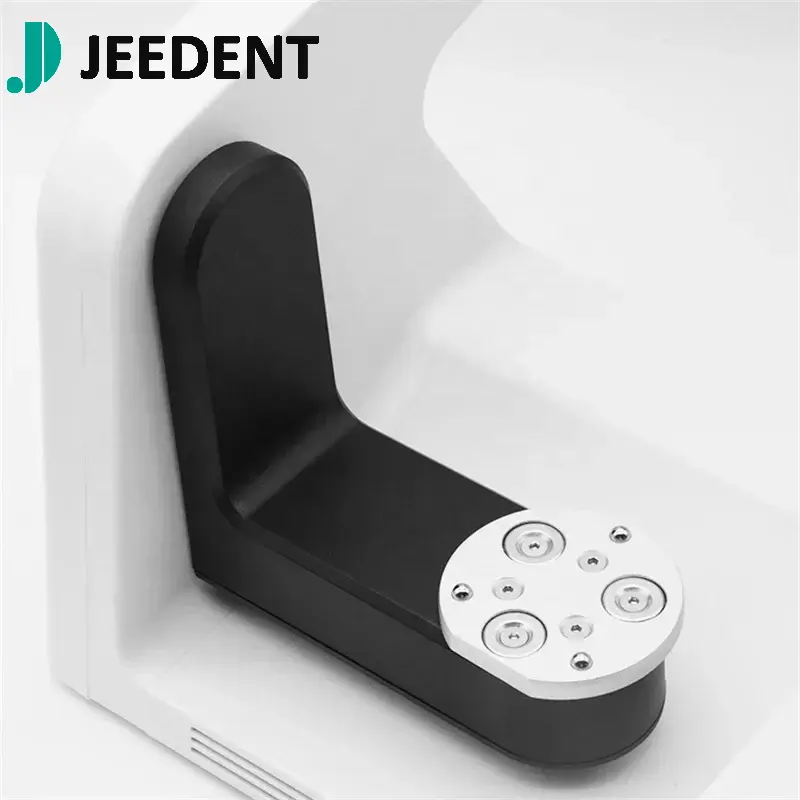

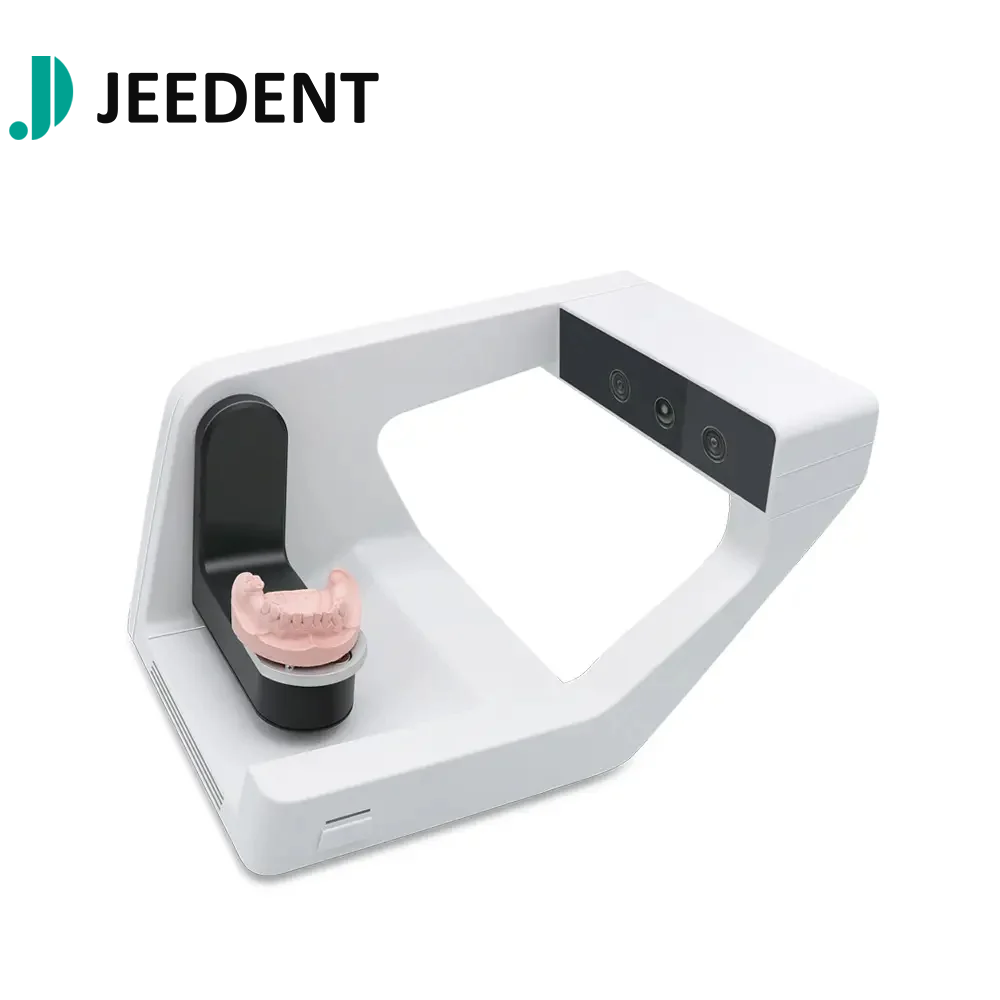

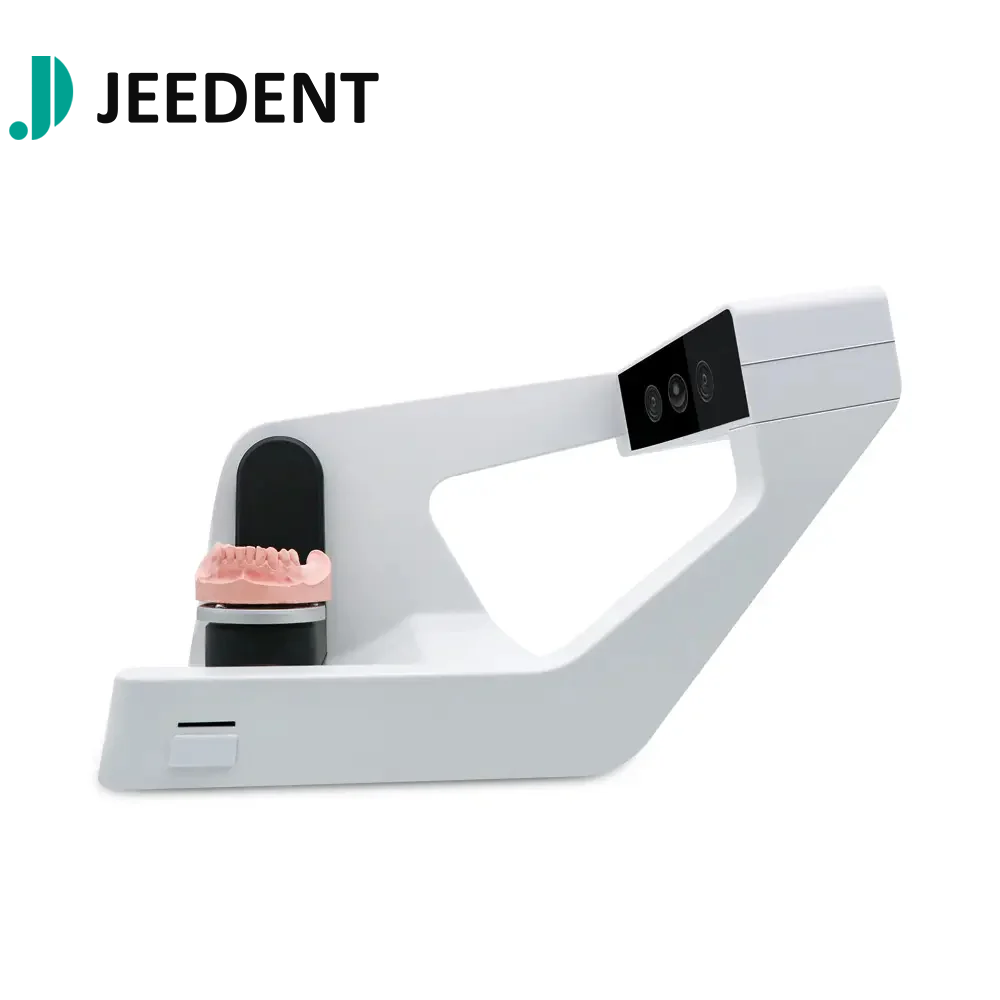

Desktop dental 3D scanner

Name: Desktop dental 3D scanner
SKU: J-EQ-02
Availability: InStock

SKU: J-EQ-02

Dental 3D Scanner Qscan has fast scanning speed and high scanning accuracy. High stan- dards of speed and accuracy reduce scanning steps, save your time and improve your productivity.

Scan area:100x100x75mm
Scan principle:Phase-shifting optical triangulation
Size:37x35x42cm
Weight:5 kgs
Light source:LED , Blue Light , 150 ANSI Lumens
Connection:USB 3.0 B-type
Accuary(ISO12836):10 μm
Full arch Scan speed:7S(8 cut)

$2,960.00

Use high-quality raw materials
Fast delivery by default DHL
30-day worry-free return and exchange
Professional customer service

Desktop dental 3D Scanner

Dental 3D Scanner – Categorized Features & Product Info

1. Core Technical Specifications

Scan Element Type: Utilizes CMOS technology for high-resolution scanning
Colour Depth: Delivers vivid imagery with a 16-bit color depth
Optical Resolution: Boasts 1.3 Mega Pixels for unparalleled clarity
Camera Resolution: Equipped with 2×1.3MP cameras for exceptional image quality
Accuracy: Achieves precision with an accuracy of <10um, ensuring reliable outcomes
Light Source: Features a blue light source for accurate scanning results
Scanning Range: Captures detailed scans within a range of 100×100×75mm
File Format: Outputs data in STL format, compatible with standard dental software
Interface: Convenient USB connectivity for easy data transfer

2. Performance & Efficiency

Scan Speed: Offers high-speed scanning capabilities for efficient workflow
Specific Scanning Times: Provides rapid results—6 seconds for bite scans and 9 seconds for maxillary/mandibular scans
Function Type: Versatile functionality as both a 3D Scanner and Oral Therapy Equipment
Scanning Method: Utilizes non-contact scanning technology for patient comfort

3. Product Availability & Customization

Private Mold: Crafted with meticulous attention to detail for exclusive performance
Stock Availability: Ready for immediate use, ensuring seamless integration into your workflow
Software Development Kit (SDK): Enables customization and integration into existing systems
Color Options: Available in both White and Black to suit your preferences

4. Dimensions & Packaging

Product Dimensions: Compact design measuring 256mm×385mm×240mm, facilitating easy storage

(Note: The “463230cm” dimension is assumed to be a formatting error; the 256mm×385mm×240mm specification is used for clarity)
Packaging: Securely packaged in a wooden box for safe transportation

5. After-Sales & Warranty

Warranty

: Backed by a 1-Year warranty for peace of mind

jeedent dental scanner product image

Product Specifications

Model	ORALEAD
Scan Area	10010075mm
Scan Method	Non-contact scanning
Accuracy	<10um
Speed	6s for bite scan,9s for maxillary/mandibular,60s for moulage,9s for 1-8 butment
Camera Resolution	2*1.3 megapixels /3 megapixels
Weight	5kg(without power supply unit and accessories)
Ambient Temp	10℃-30℃
Power	DC 24V
Output Data Format	STLOBJ
Computer Required	Win10,64bit
Light Source	Blue
